| Special length： |
| · |
As the gauge is completely sealed within the viscous liquid glycerol impedance, due to mechanical vibration generated by the buffer pointer activity。 |
| · |
Since the viscous liquid glycerol impedance control activities Boer hole as a buffer to absorb the fluid pulse pressure。 |
| · |
Also play a lubricating fluid pressure gauge glycerin within the bearings, gears and other parts wear parts, and improve the durability of the internal organization。 |
| · |
Security measures imposed, so even if Bohr hole pipe ruptured, in front of the glass will not be flying, the safety cap from the oil discharge operation。 |
| · |
Case of the security perimeter with a green tag, so you can simply set the pressure range。 |
| · |
As selection criteria, select the pressure range used by more than 2 times the overall pressure gauge。 |
|
| Model: |
Pressure Range Table: |
| OSG |
- |
A |
T |
- |
G1/4 |
|
60 |
|
10 |
MPA |
| 1 |
|
2 |
3 |
|
4 |
|
5 |
|
6 |
7 |
|
Pressure range |
60G1/4 |
60R1/4 |
| 0～1MPa |
○ |
○ |
| 1 |
Models |
Stainless steel pressure gauge glycerin |
0～1.6MPa |
○ |
○ |
| 2 |
Shape |
Ａ：No edge-shaped |
0～2.5MPa |
○ |
○ |
| 3 |
Root shape |
Ｔ：Four corners |
0～4MPa |
○ |
○ |
| 4 |
Mouth teeth |
G1/4 |
0～6MPa |
○ |
○ |
| R1/4 |
0～10MPa |
○ |
○ |
| 5 |
尺寸 |
60：φ60mm |
0～16MPa |
○ |
○ |
| 6 |
The maximum level |
See pressure range tables。 |
0～25MPa |
○ |
○ |
| 7 |
Pressure Scale Units |
MPa Single-note scale |
0～40MPa |
○ |
○ |
|
| Specification |
| For fluid |
Shimizu (generally for moving petroleum oil, phosphate salts for moving oil) |
| Accuracy |
±1.6％／F.S |
| Operating temperature range |
-5～40℃ |
| Instruction error |
±0.3％／10℃ |
| Enclose liquid |
Glycerol solution |
| Allow the vibration range |
0～7G |
| Special specifications |
·Color representation (please discuss)
·Cold region specifications (temperature range -15 ~ 60 ℃, enclose silicone oil) |
| |
| Caution |
| · |
According to the shape, size, pressure range of combinations, some models can not make or need to order the production (delivery time 20 to 40 days), please contact。 |
| · |
Please vertically installed pressure gauge glycerin. Other than the installation of vertical form, then there will be direct precision of disorders, enclose the possibility of leakage of glycerol solution。 |
| · |
Can not make a special scale handwritten version of the glycerin pressure gauge。 |
| · |
Pressure below the maximum level of glycerol in 1MPa pressure gauge, please cut out the use of safety after the front cover。 |
.jpg) |
1MPa following glycerin pressure gauge because the torque tube Boer hole weak, so the temperature gauge shell (internal pressure change) will affect the direction accuracy. Cut through the security cover prominent part of the balance of internal pressure and atmospheric pressure, thereby maintaining accuracy. However, security must be built upward to cut the safe use of the following cover 1MPa glycerin pressure gauge. |
|

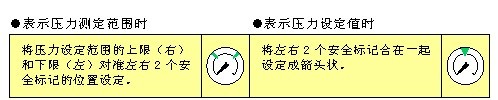

| To use the security tag |
.jpg) |
|
|
|
|
|
|
|
|
