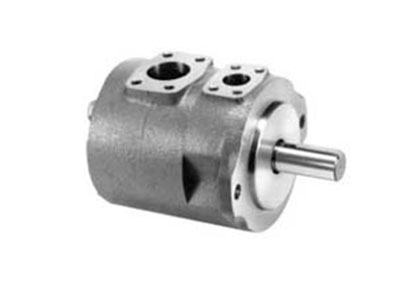

Low noise/fixed type vane pump capacity of SQP series

Leaf pumped SQP series

High performance, low noise set capacity type vane pumps, main rotary department for the replaceable way, easy maintenance

Form (types)	The highest use force (highest use pressure) MPa	The highest number (maximum turn back several) min-1	Spit quantity (1000min - 1) (vomit quantity) L/min
SQP1-2	14	1800	7.5
SQP1-3	14	1800	10.2
SQP1-4	17.5	1800	12.8
SQP1-5	17.5	1800	16.7
SQP1-6	17.5	1800	19.2
SQP1-7	17.5	1800	22.9
SQP1-8	17.5	1800	26.2
SQP1-9	17.5	1800	28.3
SQP1-11	17.5	1800	35
SQP1-12	16	1800	37.9
SQP1-14	14	1800	44.2
SQP2-10	17.5	1800	32.5
SQP2-12	17.5	1800	38.3
SQP2-14	17.5	1800	43.3
SQP2-15	17.5	1800	46.7
SQP2-17	17.5	1800	52.5
SQP2-19	17.5	1800	59.2
SQP2-21	17.5	1800	65
SQP3-17	17.5	1800	53.3
SQP3-21	17.5	1800	66.7
SQP3-25	17.5	1800	79.2
SQP3-30	17.5	1800	95
SQP3-32	17.5	1800	100
SQP3-35	17.5	1800	109
SQP3-38	17.5	1800	118
SQP4-30	17.5	1800	96
SQP4-35	17.5	1800	109
SQP4-38	17.5	1800	128
SQP4-42	17.5	1800	134
SQP4-50	17.5	1800	156
SQP4-60	17.5	1800	189

SQP(S)21
SQP(S)31
SQP(S)41
SQP(S)32
SQP(S)42
SQP(S)43

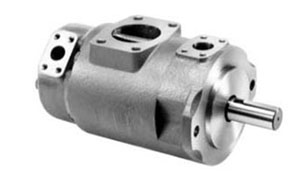

2 attached

SQP211
SQP311
SQP321
SQP421
SQP431
SQP432

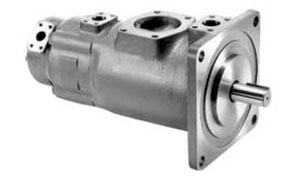

3 attached

Product specification and design changes are not reported
