Leaves the pump V - 1 Series

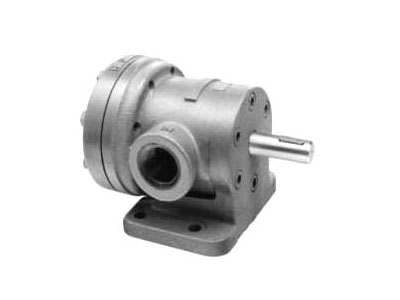

Fixed-capacity blade pump V - 1 ** series

Hydraulic balanced vane pump representative models. Widely used in the evaluation for mobile oil

Form (types)	The highest use force (highest use pressure) MPa MPa	The highest number (maximum turn back several) min-1 min-1	it quantity (1000min - 1) (vomit quantity) L/min
V104/108-Y	7	1800	5.7
V104/108-E	7	1800	8.5
V104/108-G	7	1800	11.7
V104/108-A	7	1800	16.8
V104/108-C	7	1500	25.8
V104/108-D	7	1200	36.3
V-124/138	7	1500	48.6
V-134/138	7	1500	61.5
V-134U/138U	7	1500	72.6
V-134X/138X	7	1200	94.2
V-144/148	7	1200	119

V-108
V-128
V-138
V-148

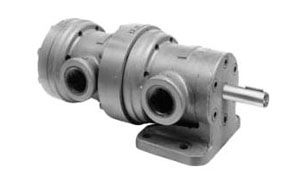

2连式

商品規格及設計不予告變更
