1. Adopts US-made Dosmatic proportional injector with
accurate mix design.
2. Adopts US-made ARO diaphragm pump (with Teflon liner)
that has a long life span and low failure rate.
3. Raw liquid tank comes with a level sensor which signals
and stops further mixing; it also activates an indicator and
alarm when the raw liquid tank level is unstable.
4. The output pressure sensor for mixed liquid activates an
indicator and alarm when the output pressure is low; it
also reserves one terminal set for connection to the alarm
system of the die-casting machine.
5. When the mixed liquid falls below the lower limit level,
it will automatically carry out proportional mixing for the
release agent.
| Specification/model |
YT-M12 |
YT-M35 |
YT-M35L |
YT-M90 |
YT-M90L |
YT-M172 |
| Capacity |
50L |
80L |
100L |
100L |
100L |
100L |
| Mixing method |
Pneumatic |
| Once discharge volume (Max.) |
45.4LPM |
133LPM |
266LPM |
340.7LPM |
681.4LPM |
651.4LPM |
| er supply method |
Supply when falling below the lower limit level, stop when coming to the above limit level. |
| Number of pump |
1/2"×1 |
1"×1 |
1"×2 |
1-1/2"×1 |
1-1/2"×2 |
2"×1 |
| Number of Die-casting machine supply |
Depend on the size and brand of spraying machine |
| Voltage |
110V/220V |
| Air pressure |
0.4-0.6MPa |
| Water pressure |
0.15-0.2MPa |
| Water inlet |
Rc1/2 |
| Air inlet |
10 |
| Mixing liquid outlet |
1/2" |
1" |
1-1/2" |
2" |
2" |
2"~3" |

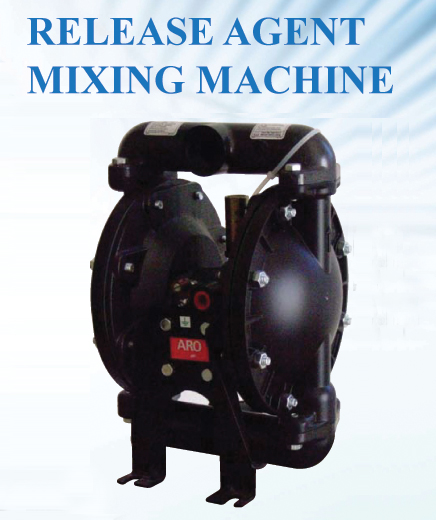

The United States imported ARO diaphragm pump

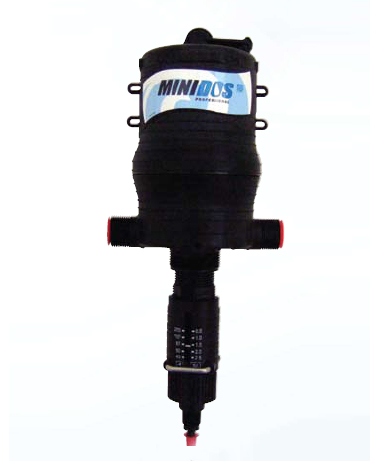

The United States imported Dosmatic proportional dosing machine
Features
|
